Achilli revolving saw for angle cutting on stone tiles ARS

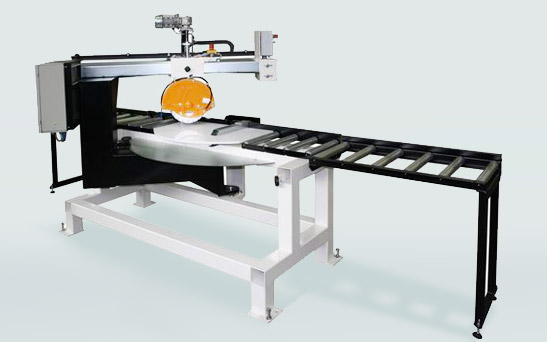

Circular cross cut revolving saw for angle cutting, developed and designed to simplify cuts on small pieces. Ideal for creating tiles and design pieces. The machine is equipped with precision goniometer and it's available with manual or motorized feed.

Request Information

Tailored Achilli machines

Request customization

Features
Technical details
Accessories
Gallery
Related products

Head motion

Manual head motion.

Head swivelling

Head assembly swivelling range +45°, 0°, -45° with precision positioner.

Useful cut

Max slab width: 400mm at 45° and 600mm at 0°.

Advantages

Revolving cross-cutting machine ARS for anglle cutting:

Available with manual or motorized head feed;
Maximum cutting precision guaranteed by a special beam design;
Head assembly swivelling: +45°, 0°, -45°.

Technical details

	ARS	ARS HT
Cutting depth with ø350mm blade	600 mm (2')	600 mm (2')
Diamond blade diameter	250-300-350 mm (10”–12”–14”)	400-450-500 mm (16”–18”–20”)
Blade bore size	25.4 mm (1")	25.4 mm (1")
Motor power	5kW = 7HP (3ph.)	5.5kW = 7.5HP (3ph.)
Motor rotation speed	2800 rpm a 50Hz – 3400 rpm a 60Hz	1400 rpm a 50Hz – 1700 rpm a 60Hz
Standard voltage/frequency	400V-50/60Hz /230V-60Hz 3ph.	400V-50/60Hz /230V-60Hz 3ph.

Accessories

Laser

Laser alignment device mounted on the head shows the blade’s cutting line, battery feed 1,5V.

Side table

Side extension table with 6 rollers (dimensiones: 1000x550x835 mm). The tables are connectable one after the other, it's possibile to use more tables at the same time.

Motorized head feed

Motorized head travel (X and Z axes) with variable speed 0-7 m/min and automatic cross forwarding speed reduction at the end of the cut.

Pneumatic brake

Pneumatic brake with control lever, for locking the head in the desired position.

HT version

Increased version with blade guard for disc Ø 400-450mm and 3phase motor 400V 50Hz - 1400rpm, 5,5 kW (7,5HP). Maximum cutting depth with 450mm blade: 140mm.
